Description

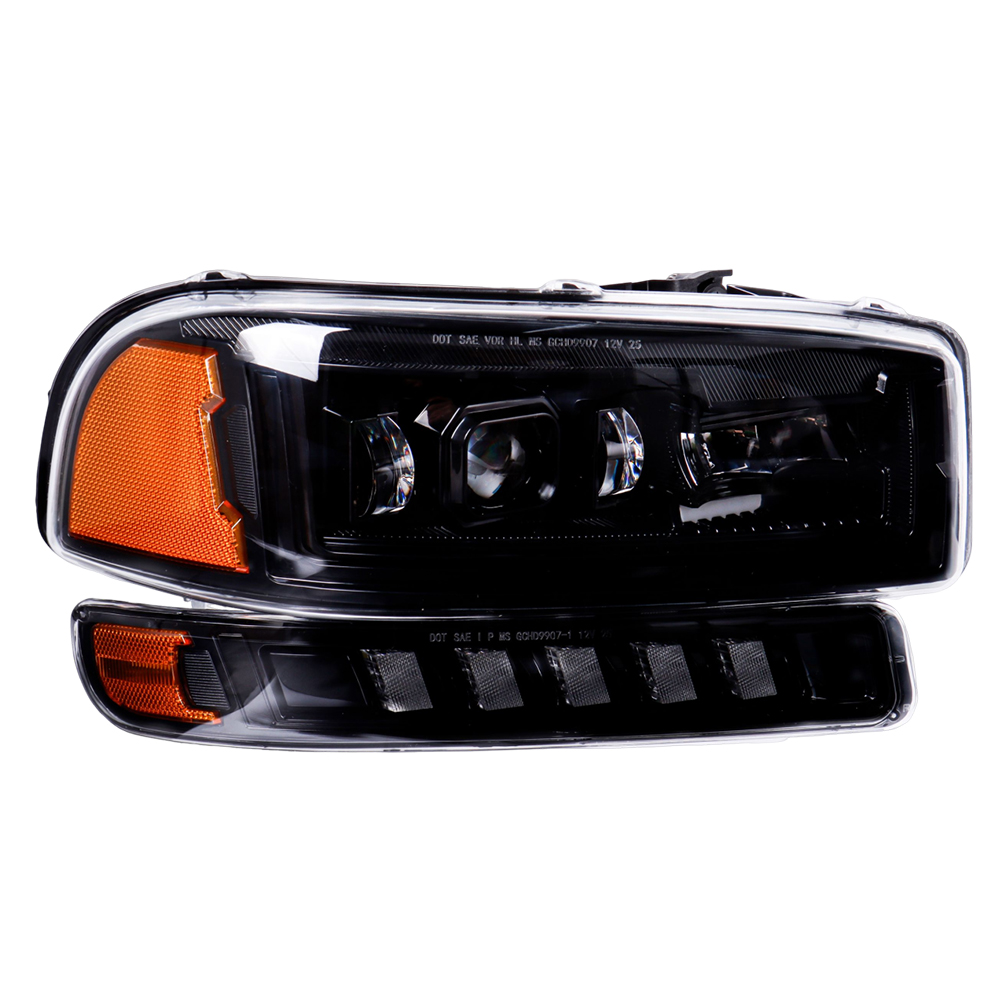

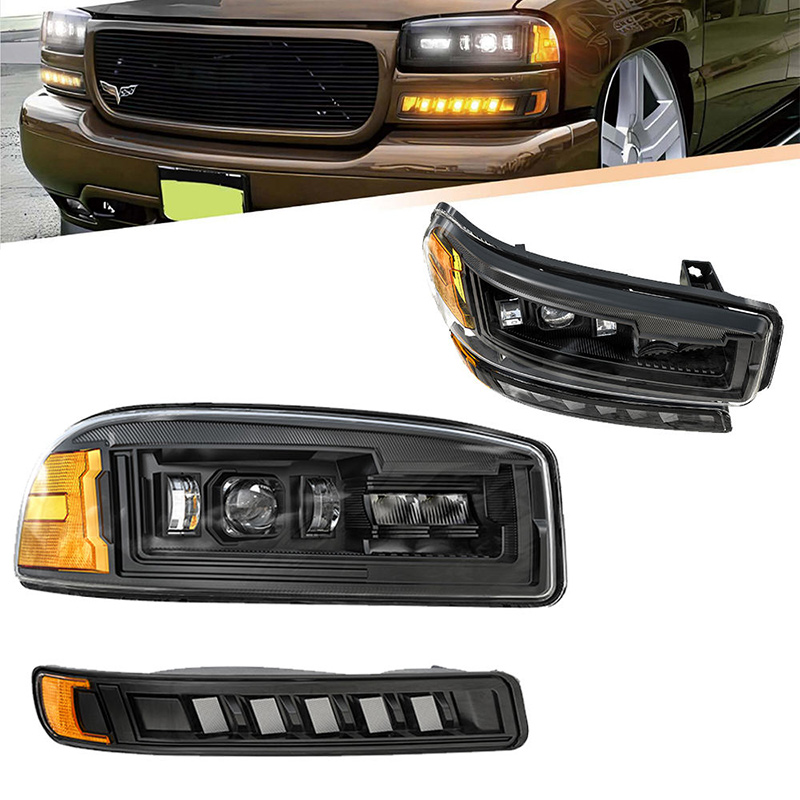

Upgrade your GMC Sierra 1500’s headlights with these DOT-approved LED headlight assemblies, engineered to deliver dramatically brighter illumination, sharper beam focus, and superior nighttime visibility without blinding oncoming traffic. Designed as a direct fit for your Sierra, these rugged LEDs feature high-output chips, efficient heat dissipation, and waterproof IP65-rated housings—ensuring reliable performance in rain, snow, and off-road conditions. With crisp white light that closely mimics daylight and plug-and-play installation, this upgrade enhances both safety and style while maintaining full compliance with Department of Transportation (DOT) regulations. Illuminate the road with confidence and modernize your truck’s look with a lighting solution that’s as tough and capable as your GMC.
Specification of GMC Sierra Led Headlights
- Beam Modes：High Beam, Low Beam, Turn Signals, DRL, Position Light, Side Marker Light
- Color Temperature：6051K High Beam, 6085K Low Beam, 6233K DRL, 6358K Position Light, 1650K Turn Signal, 1617K Side Marker Lights
- Theoretical Power：45W High Beam, 29W Low Beam, 1.9W DRL, 0.5W Position Light, 4W Turn Signal, 0.7W Side Marker Lights
- Theoretical Lumen：4567LM High Beam, 3114LM Low Beam, 182.6LM DRL, 38.75LM Position Light, 298LM Turn Signal, 101.3LM Side Marker Lights
- Actual Power：45.67W High Beam, 31.14W Low Beam, 1.826W DRL, 0.3875W Position Light, 2.980W Turn Signal, 1.013W Side Marker Lights
- Actual Lumen：1978lm High Beam, 1269LM Low Beam, 48.68LM DRL, 8.296LM Position Light, 23.10LM Turn Signal, 13.8LM Side Marker Lights
- Outer Lens Material：PC
- Housing Material：PC＋ABS
- Housing Color：Black
- Certification：DOT
Features of GMC Sierra 1500 Led Headlights
- DOT Approved & Street Legal: Fully compliant with U.S. Department of Transportation (DOT) standards, ensuring safe beam pattern output without glare for oncoming drivers.
- High-Brightness LED Chips: Advanced LED technology delivers powerful, crisp white illumination with improved road clarity, wider coverage, and longer projection distance compared to factory halogen headlights.
- Plug-and-Play Installation: Direct-fit design for GMC Sierra models allows easy installation using factory mounting points and connectors—no cutting or complex modifications required.
- Durable & Weatherproof Construction: IP65-rated waterproof housing with sealed lens protects against moisture, dust, and harsh weather conditions for long-lasting reliability.
- Efficient Cooling & Long Lifespan: Built-in heat sink and cooling system ensure stable performance, prevent overheating, and provide up to 50,000 hours of service life.
Compatible with
2007 GMC Sierra 1500
2006 GMC Sierra 1500
2005 GMC Sierra 1500
2004 GMC Sierra 1500
2003 GMC Sierra 1500
2002 GMC Sierra 1500
2001 GMC Sierra 1500
2000 GMC Sierra 1500
1999 GMC Sierra 1500
2007 GMC Sierra 1500HD
2006 GMC Sierra 1500HD
2005 GMC Sierra 1500HD
2004 GMC Sierra 1500HD
2003 GMC Sierra 1500HD
2002 GMC Sierra 1500HD
2001 GMC Sierra 1500HD
2004 GMC Sierra 2500
2003 GMC Sierra 2500
2002 GMC Sierra 2500
2001 GMC Sierra 2500
2000 GMC Sierra 2500
1999 GMC Sierra 2500
2007 GMC Sierra 2500HD
2006 GMC Sierra 2500HD
2005 GMC Sierra 2500HD
2004 GMC Sierra 2500HD
2003 GMC Sierra 2500HD
2002 GMC Sierra 2500HD
2001 GMC Sierra 2500HD
2007 GMC Sierra 3500
2006 GMC Sierra 3500
2005 GMC Sierra 3500
2004 GMC Sierra 3500
2003 GMC Sierra 3500
2002 GMC Sierra 3500
2001 GMC Sierra 3500
2001 GMC Sierra C3
2006 GMC Yukon
2005 GMC Yukon
2004 GMC Yukon
2003 GMC Yukon
2002 GMC Yukon
2001 GMC Yukon
2000 GMC Yukon
1999 GMC Yukon
2006 GMC Yukon XL 1500
2005 GMC Yukon XL 1500
2004 GMC Yukon XL 1500
2003 GMC Yukon XL 1500
2002 GMC Yukon XL 1500
2001 GMC Yukon XL 1500
2000 GMC Yukon XL 1500
2006 GMC Yukon XL 2500
2005 GMC Yukon XL 2500
2004 GMC Yukon XL 2500
2003 GMC Yukon XL 2500
2002 GMC Yukon XL 2500
2001 GMC Yukon XL 2500
2000 GMC Yukon XL 2500
Does NOT Fit All Denali Trims. For 2007, Fits Classic Models ONLY
